Casa /Prodotti/Macchina portatile per la marcatura dot pin/80x40mm thorx 6 point breakdown machine pin number inscription machine vin number portable pneumatic marker machine vin

80x40mm thorx 6 point breakdown machine pin number inscription machine vin number portable pneumatic marker machine vin

1 Set
MOQ
80x40mm thorx 6 point breakdown machine pin number inscription machine vin number portable pneumatic marker machine vin
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Machine Type: new
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pump
Warranty: 1 year
Key Selling Points: Easy to Operate
Applicable Industries: Manufacturing Plant
Showroom Location: Peru
Rated Power: 300W
Engraving Speed: 0-5 letters/second
Main Axle Rotational Speed: N/A
Feeding Height: 0-350mm
Milling Cutter Diameter: 1-5mm
Application: 80x40mm
Dimensions: 45*45*55cm
Weight (KG): 20
Colour: red
MOQ: set
Drive type: pneumatic
Controller: 7"LCD controller
Software: Insert ThorX6
Product name: dot peen marking machine
After Warranty Service: Video technical support
Local Service Location: Malaysia
Certificazione: CE
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Packaging Details: 4mm carton packaging, full of foam, safe transport marking machine
Descrizione di prodotto

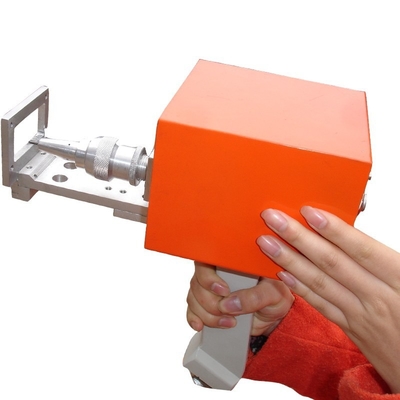

High Quality Portable Metal Handheld Dot Peen Marking Machine



We are 12 years factory, 8 years export experience,providing one stop service,machine customized,have No complaints on alibaba.



Marking speed

2-5 characters(2x2mm)/s

Stroke Frequency

300times/s

Marking depth

0.01 to 1mm (Vary to the material)

Marking contents

Alphanumeric info, Data Matrix or dot matrix 2D codes,

Shift codes, Barcode, Serial Number, Date, VIN Code, Time,

Letter, Figure, Logo, Graphics and etc.

Stylus Pin Hardness

HRA92/HRA93

Marking area

80x40mm,130x30mm,140x80mm,200x200mm

Dimensions

140x20x240mm

Marking materials

below HRC60 metallic and nonmetallic materials ,

above HRC60 need special stylus

Repeat accuracy

0.02-0.04mm

Power

300W

Work voltage

AC 110V 60HZ or AC220V 50HZ

Compressed Air( Pneumatic Air)

0.2-0.6Mpa

Connection

 USB and RS-232

Controller

7"LCD touch screen controller

Power type

Pneumatic

Marking directions

up, down, left, right, and the circular arc surface marking

Gross weight

13KG





Company Information



We have specialized in laser marking machine,pneumatic marking machine for 12 years.we have supply marking machine parts for more than Hundreds of marking machine supplier in this world.

And we are the assigned supplier of Changan ,Xinyuan,Chuanyi.We have export to the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than 30 countries and regions.



We have supply marking sulotion for these company





Packaging & Shipping



We have two types of packing: suit for air and ocean transportation.

  • Packing by corrugated board boxes, Light weight, freight is lower
  • Packing by wooden case, more security delivery with heavier weight and higher freight



Our Services



  • As we do not have the maintenance department at overseas, you can send back the problem spare parts to maintenance or replacement the new spare parts.
  •  We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
  • One year guarantee for main machine (People damaged are charged).
  • Full technical support\ by e-mail, call and video
  • Lifelong maintenance and spare parts supply.
  • Free design of fixtures as customers required.
  • Free training installation and operation for the staffs.

We offer 24 hours of on-line professional service
